Introduction to binary  catering for vision impaired students
About this lesson
This sequence of lessons focuses on what a binary number is, what a decimal number is, why binary numbers are important in digital systems and how to read and understand a binary number.
Year band: 56
Curriculum Links AssessmentCurriculum Links
Links with Digital Technologies Curriculum Area
Strand  Content Description

Knowledge and Understanding  Examine how whole numbers are used to represent all data in digital systems (ACTDIK015)
Links with other Learning Areas
Learning Area  Strand and Content Description

Mathematics  (Number and Algebra, Year 5): Use efficient mental and written strategies and apply appropriate digital technologies to solve problems (ACMNA291).
Assessment
Throughout working time, observe student progress and make anecdotal notes based on the learning intentions of the lesson:
 what a binary number is,
 what a decimal number is (revision)
 why binary numbers are important in digital systems
 how to read and understand a binary number.
Student work samples from the maths workbook (learning construction section) and the KWL chart could also be collected for assessment records.
Learning hook
 Prior to showing the video, ask students to write what they know about binary numbers in the Knowledge column of the KWL Chart. If you have access to collaborative writing tools like Google Docs or Microsoft 365, you could do this together online. Or try using a class Padlet to complete the KWL chart together.
 Show students James May’s video about binary numbers (James May's Q&A). Throughout the video, encourage students to note any questions (Wondering column) or new knowledge (Learning column) they have about binary or decimal numbers. Ask students to share questions, or any ideas they have learned from the short film. Keep track of all contributions.
Suggested adaptions
Our students will be able to do this part on their own. However we would audio describe it as we watched the video.
Learning map and outcomes

Briefly discuss the learning intention of the lesson with students.
For example:
Today, we are going to learn:
 what a binary number is,
 what a decimal number is (revision)
 why binary numbers are important in digital systems
 how to read and understand a binary number.
Students have a clear understanding of what they are hoping to achieve in this lesson.
Learners could discuss the different skillsets and mindsets they will have to adopt ‐ this ties in with the Creative and Critical Thinking Capabilities.
Learning input
Whole class activity
 As a whole class, step through the following IWB Binary numbers resources. First, look at the introduction and then open the notebook file ‘Stage 1 Creating a decimal number from a binary number’.
NOTE: You will need IWB software to open this.
Note: The document ‘Stage 2 Creating a binary number from a decimal number – challenge cards’ can be used as an extension.
Suggested adaptions
We converted these two challenges to a raw text file (rtf) so students could upload them to their Braille note (refreshable braille notetaker). The files are "activity 1" and "activity 1 extension”.
NOTE: The RTF file is compatible with MS Word so will work on windowsbased computers, the difference being that it is also editable on a range of adaptive technology devices or any device that's built on windows structure.
 Begin with the initial two slides. Revisit the principles of binary numbers explained in the James May video. Compare decimal numbers (base 10) and binary numbers (base 2).
Suggested adaptions
Our students will be able to do this part on their own
 Work through the examples in the slides of how students convert numbers from binary into decimal. Highlight that this conversion relies on users adding numbers to determine the equivalent decimal number.
Suggested adaptions
For this section we worked though the slides by using tactile objects to represent both the 1 and 0 (on and off). We used pop sticks to represent the 1 and plastic circles to represent the zero.
Any two obviously different objects could be used to represent the base 2 numbers here.
 Send students back to their desks to complete Stage 1 of the ‘Learning construction’ section below.
Suggested adaptions
We made some minor changes to the task for the learning construction see below
Learning construction
 Give students a binary chart and spare 0s and 1s to cut up (Binary Table and Numbers pdf).
Suggested adaptions
For this section we created a tactile column section for the students to make their answers.
See the dbt file attached titled "Binary Table". There is also an rtf file titled "binary table.rtf"
NOTE: The dbt file is compatible with a program named Duxbury. Duxbury is specialist software designed to to be used with an embosser and coverts English to UEB braille code.

Give students the Stage 1 binary number cards (Stage 1 Creating a decimal number from a binary number – numbers for working time pdf) so that they can create decimal numbers from binary numbers.
Suggested adaptions
For this part students once again used an rtf file on their Braillenote titled "activity 2“.
They then recorded their answers by manually writing out their answers on a separate document in their Braillenote.
This activity has a range of ability levels to choose from. You can provide the different levelled numbers for the students. Alternatively, students can selfselect.
 When complete, correct as a whole class, enabling students to ask questions if they encounter an incorrect answer.
Learning demo
Group challenge
In small groups, students race to complete the challenge the fastest.
 Give out the challenge cards (Stage 1 Creating a decimal number from a binary number – challenge cards pdf).
Suggested adaptions
For this part students once again used an rtf file on their Braillenote titled “activity 3“.
 In teams, students work together to convert five binary numbers into decimal numbers. When complete, the group shouts ‘stop’ and receives a time.
Suggested adaptions
We did this as individuals as we have small numbers at our school.
 Students swap responses with another group and correct answers. You could complete a short reflection here and ask how successfully the teams collaborated. Did everyone participate equally? Did they devise a strategy to complete this challenge?
Suggested adaptions
We did not do this section.

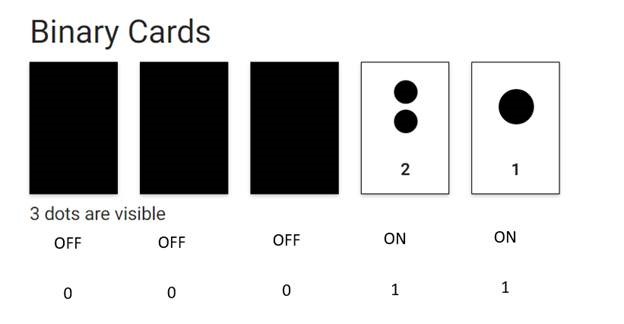

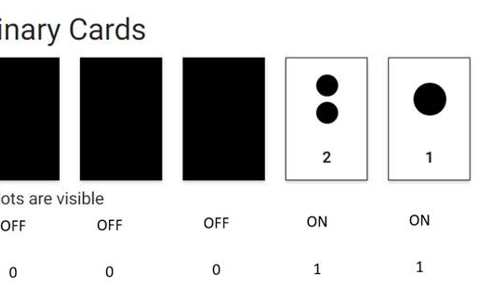

 Alternatively use these online binary cards for a binary number of 8 digits (byte) provided by CS unplugged. As a starting point you may want to use 5 online binary cards which make it easier to introduce the concept.
Suggested adaptions
We did not do this section.
Learning reflection
 Provide students with three quick questions to answer prior to leaving.
Do an eyesclosed handsup trafficlight poll. (Ask students to hold up three fingers if they understand the concept well enough that they could teach it; two fingers if they think they understand it, but only just; and one if they need help).Suggested adaptions
We did not complete this section.
Instead we looked into this in greater detail moving to see how the Decimal numbers relate to ascii codes / numbers. Using the example of how a keyboard sends a signal of on and off numbers to make up each letter that is typed (ASCII). I gave the students the address to a website that had the conversions of decimal to ascii numbers and asked each student to convert their name to binary using the code. Students accessed the website using their screen reader (JAW’s)
Once students had their name in Binary I asked them to create a word in binary and then ask a friend to crack the code using the ascii converter.
Questions:
 Do you understand what a binary number is?
 Do you understand why binary numbers are important in digital systems?
Suggested adaptions
We revisited the 'How a keyboard sends a signal' activities to help with this part.
 Can you read and understand a binary number?
 Can you convert a binary (base 2) number to a decimal (base 10) number?

Make anecdotal notes of any students who do not reply ‘yes’ to these questions.
Revisit the skills and mindsets you discussed at the start of the lesson. What examples of great learning behaviours did we see? How could we be even more effective learners?
