Morse code
network

Years 7-8

This lesson sequence is a hands-on approach to the learning about digital systems for years 7–8.

Students use common, simple classroom electronics (eg the BBC micro:bit) to simulate a packet switching network, using Morse code as a metaphor.

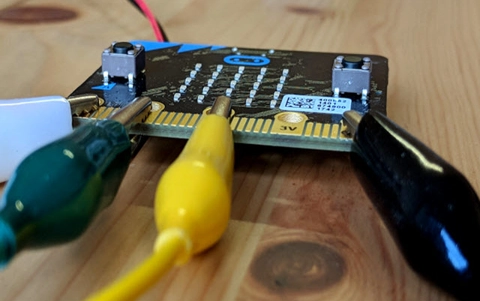

White, greeen, yellow and black alligator clips connected to a circuit board

Content

Through hands-on experimentation and connected theory, the following concepts are explored:

  • local area network (LAN)
  • wide area network (WAN) and the internet
  • network topology: bus vs star
  • hubs, switches and routers
  • packets and packet switching
  • internet protocol (IP)
  • transport control protocol (TCP)
  • hacking through packet sniffing
  • encryption.

Length

Approximately 4 x 45 minute lessons. (An extra lesson may be needed if devices are unfamiliar.)



Developed by DLTV for the Digital Technologies Hub

Digital Learning and Teaching Victoria logo

What you need

Look out for safety precautions like this.

This indicates an enquiry opportunity for students to discuss and figure out a solution.

This gives key knowledge and points to further resources.

  1. A class set (minimum eight) of BBC micro:bit devices is recommended for this sequence. Years 7–8 students may be familiar with this device from primary years. It might be used for other strands of the Digital Technologies curriculum in years 7–8.

    Potential alternatives:

    • CodeBug (a similar device to the micro:bit)
    • Circuit Playgrounds Express
    • Arduino Uno with ThinkerShield or other easy attachment for buttons, pins and LEDs (avoid breadboarding)
    • another codeable device with
      • at least one pin for digital reading safe voltage
      • at least two pins for digital writing safe voltage
      • at least one pushbutton
      • at least two LEDs or an RGB LED.

    Testing was done with micro:bit and CodeBug. Both use 3V when running on batteries, and may be connected together.

    Other devices are untested.

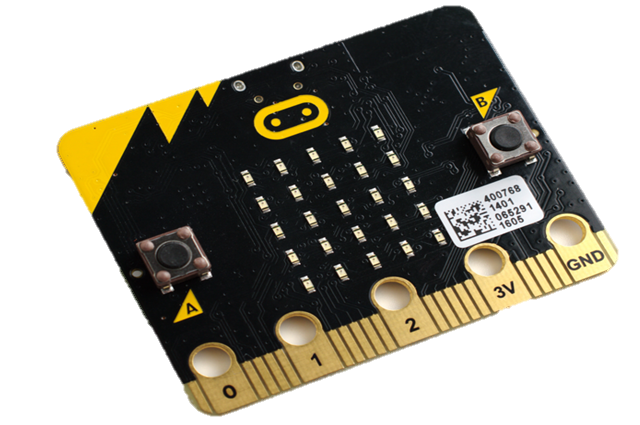

Photograph of a BBC micro:bit device
  1. Battery power for the devices. For practical reasons, this activity will be difficult to run with devices still attached to computers or laptops when testing.
    The BBC micro:bit Go Kit comes with a battery pack for two AAA batteries to be attached.

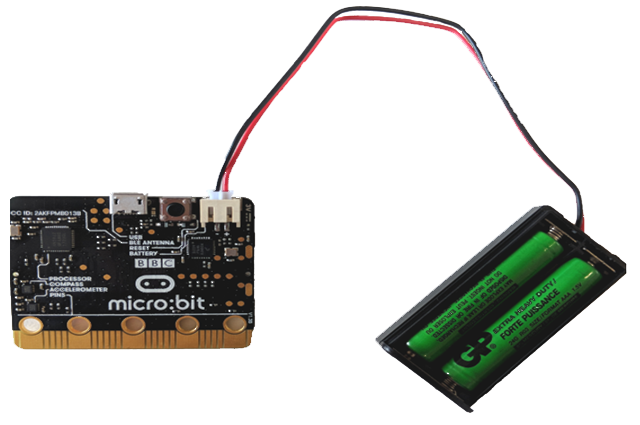

Photograph of a BBC micro:bit with connect battery pack


  1. Test leads with alligator clips. At least three leads per device is recommended.

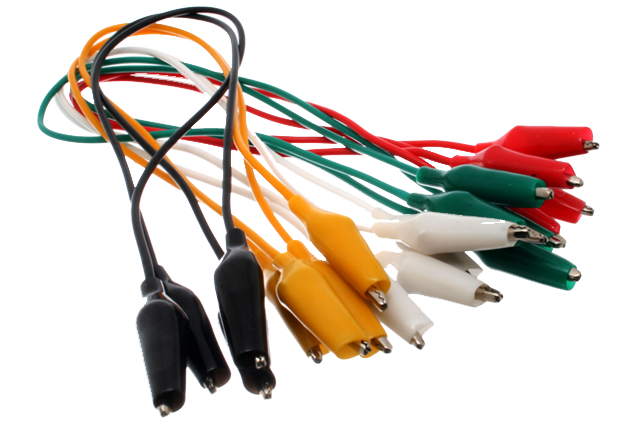

Photograph of a bundle of red, white, black and green alligator clips


  1. Computers or laptops to write code and transfer programs on to devices.
    Note: micro:bit can also be coded from a mobile device or tablet.
Image of a computer, tablet and phone

Lesson One

Goals

  • Discuss reasons for why computers are networked.
  • Introduce Morse code as our metaphor for coded network signals.
  • Program a micro:bit to send signals to another micro:bit via electrical lead.
  • Practise sending Morse code signals between two micro:bits.

Introduction

In the 1980s and early 1990s, most home computers were alone. They had no connection to other computers or devices, except peripherals like printers.

Why do we network computers now?

  • Communicating (eg messaging, emailing)
  • Sharing files/data
  • Sharing hardware (eg common printers/copiers)
  • Sharing and accessing software (eg Google Docs and other cloud services)

Morse code

For this lesson sequence, we use Morse code to create network signals between our micro:bits.

Morse code was originally developed for the telegraph system.

  • Each letter or number is represented by a specific sequence of dashes and dots.
  • Each dot is made by tapping a button to send an electrical pulse.
  • Each dash is made by holding down the button to send a longer electrical pulse.
  • A longer pause indicates the next letter or number is on the way.

TASK

Using a Morse code chart, practise writing a short message to another student on paper.

A: Dot dash. B: Dash dot dot dot. C: Dash dot dash dot. D: Dash dot dot. E: Dot. F: Dot dot dash dot. G: Dash dash dot. H: Dot dot dot dot. I: Dot dot. J: Dot dash dash dash. K: Dash dot dash. L: Dot dash dot dot. M: Dash dash. N: Dash dot. O: Dash dash dash. P: Dot dash dash dot. Q: Dash dash dot dash. R: Dot dash dot. S: Dot dot dot. T: Dash. U: Dot dot dash. V: Dot dot dot dash. W: Dot dash dash. X: Dash dot dot dash. Y: Dash dot dash dash. Z: Dash dash dot dot. 1. Dot dash dash dash dash. 2: Dot dot dash dash dash. 3: Dot dot dot dash dash. 4: Dot dot dot dot dash. 5: Dot dot dot dot dot. 6: Dash dot dot dot dot. 7: Dash dash dot dot dot. 8: Dash dash dash dot dot. 9: Dash dash dash dash dot. 10: Dash dash dash dash dash.

Coding the micro:bits

Two micro:bits will be connected together as shown below.

The device on the left will set Pin 1 (transmit port) to high when Button B is pressed. The device on the right will detect this on Pin 0 (receive port). The GND pins are tied together for electrical stability.

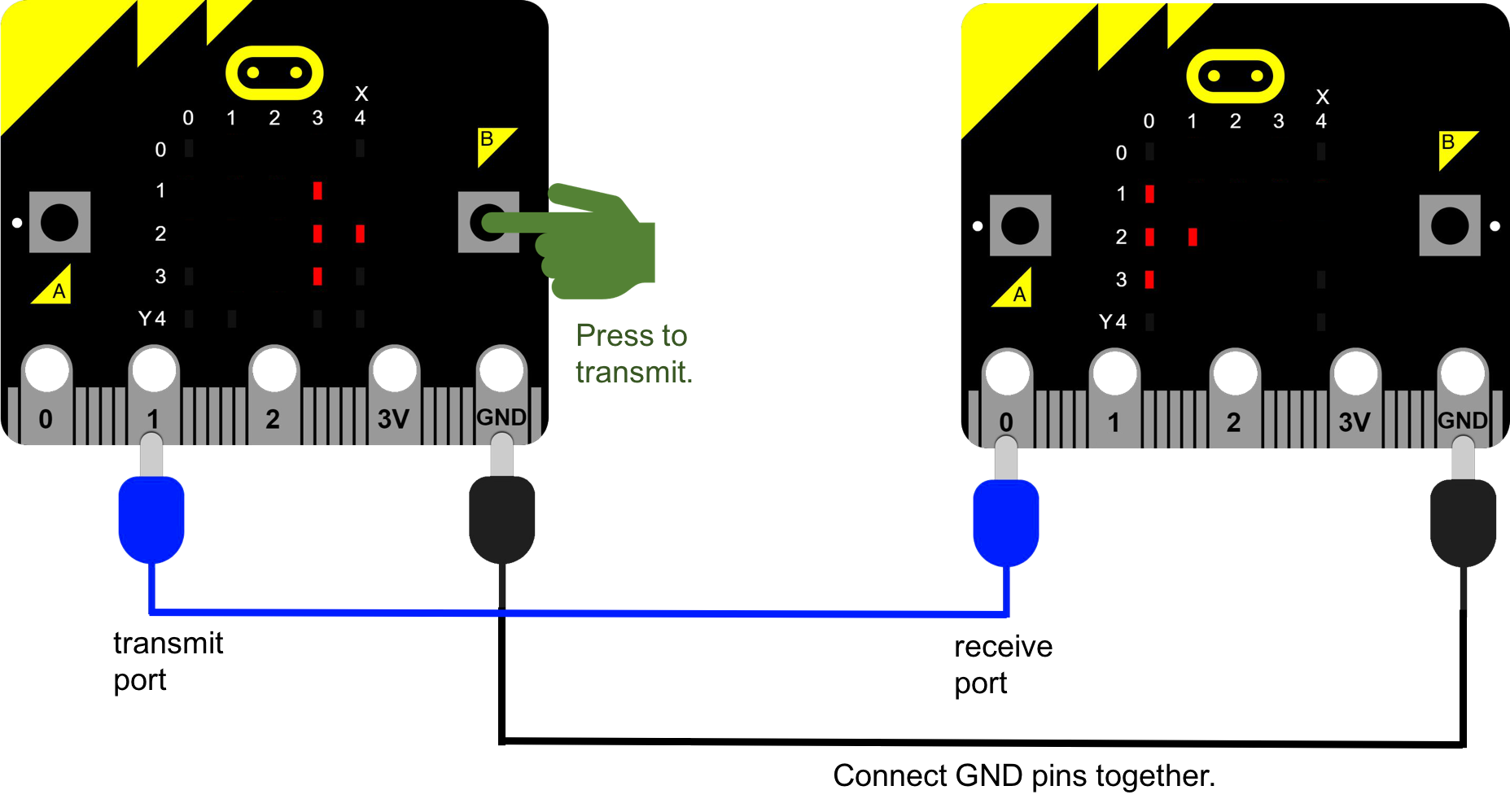

Diagram of two micro:bits connected together. There are two devices connected by two cables. Each device has a grid: an X axis labelled 0, 1, 2, 3, 4; and a Y axis labelled 0, 1, 2, 3, 4. Both devices are yellow Each device has two buttons labelled A and B. Each device has five pins labelled 0, 1, 2, 3V and GND. On Device 1, Button B is being pressed. Device 1 has four lights lit up (X axis listed first, then Y axis): 3, 1; 3, 2; 4, 2; 3, 3. Device 2 has four lights lit up: 0, 1; 0, 2; 1, 2; 0, 3. Connecting cable 1 is connected to Device 1, Pin 1. This is labelled transmit port. It is connected to Device 2, Pin 0. This is labelled receive port. This cable is blue. Connecting cable 2 connects the GND pins on the two devices together. This cable is black. /images/default-source/Lesson-ideas-details/morse-code-network/connected-microbits.png

Diagram 1: two micro:bits connected together

Coding the micro:bits is an opportunity to address the Creating Digital Solutions strand (Victorian Curriculum) or the Processes and Production Skills strand (Australian Curriculum).

To save time, code can be copied from this lesson sequence.



What does our transmit program need to do?

  • REPEAT FOREVER ...
    • IF button B is being pressed ...
      • Digital write 1 (high) on Pin 1.
      • Draw the transmit arrow.
    • ELSE
      • Digital write 0 (low) on Pin 1.
      • Clear the transmit arrow.
    • END IF
  • END REPEAT
This is visual programming code: Repeat forever (If: Button B is pressed [then: digital write pin P1 to 1; plot x3 y1; plot x3 y2; plot x4 y2; plot x3 y3]; [else: digital write pin P1 to 0; unplot x3 y1, x3 y2, x4 y2, x3 y3]).

Diagram 2: Transmit Program



What does our receive program need to do?

  • REPEAT FOREVER ...
    • IF digital read on Pin 0 is 1 (high) ...
      • Draw the receive arrow.
    • ELSE
      • Clear the receive arrow.
    • END IF
  • END REPEAT
This is visual programming code: Repeat forever (If: Digital read pin P0 =1 [then: plot x0 y1; plot x0 y2; plot x1 y2; plot x0 y3]; [else: digital write pin P1 to 0; unplot x0 y1, x0 y2, x1 y2, x0 y3]).

Diagram 3: Receive Program

TASK

Work in groups that allow for two micro:bits to be connected together.

Save the transmit program to one micro:bit, and the receive program to the other micro:bit.

Test the code by connecting the two micro:bits as in Diagram 1.

Send the message you prepared on paper earlier, and see if you can correctly decode it.

Try sending a new message that the receiver doesn’t know!


Always read product safety warnings before using classroom electronics hardware.

Never connect a 3V (power) pin directly to a GND pin.


Photograph of two micro:bits connected together.

Two-way communication

To talk back and forth, set up the two micro:bits as shown below.


Diagram of two micro:bits connected together with three cables. Both devices are yellow Each device has a grid: an X axis labelled 0, 1, 2, 3, 4; and a Y axis labelled 0, 1, 2, 3, 4. Each device has two buttons labelled A and B. Each device has five pins labelled 0, 1, 2, 3V and GND. Connecting cable 1 is connected to Device 1, Pin 0. This is labelled receive port. It is connected to Device 2 on Pin 1. This is labelled receive port. This cable is green. Connecting cable 2 is connected to Device 1. This is labelled transmit port. It is connected to Device 2 on Pin 0. This is labelled receive port. This cable is blue. Connecting cable 3 connects the GND pins on the two devices together. This cable is black.

Diagram 4: two-way communication with micro:bits



Can we combine the two programs so that a micro:bit can transmit and receive?

Let’s say that transmitting takes priority over receiving.

  • REPEAT FOREVER ...
    • IF button B is being pressed ...
      • Do the usual transmit code.
    • ELSE
      • Do the usual clear transmit code.
      • Do the receive code here.
    • END IF
  • END REPEAT
This is visual programming code: Repeat forever (If: Button B is pressed [then: digital write pin P1 to 1; plot x3 y1; plot x3 y2; plot x4 y2; plot x3 y3]; [else: digital write pin P1 to 0; unplot x3 y1, x3 y2, x4 y2, x3 y3 (if digital read pin P0 = 1); (then plot x0 y1; x0 y2; x1 y2; x0 y3); else (unplot x0 y1; x0 y2; x1 y2; x0 y3)]).

Diagram 5: Combine two programs so that a micro:bit can transmit and receive

Lesson Two

Goals


  • Introduce the concept of network protocols.
  • Calculate bitrate.
  • Introduce the concept of a local area network (LAN).
  • Simulate a network hub.

Review of previous lesson


You may wish to begin by having students practise once more with the setup from last lesson. If necessary, put the transmit and receive program onto both micro:bits again, then practise sending a simple message in Morse code.


Introduction



What do computers use for network signals, instead of Morse code?

  • It is the same system they use for storing letters and numbers: binary.




Binary is covered in the Data and Information strand (Victorian Curriculum) or the Knowledge and Understanding strand (Australian Curriculum). Data is stored in bits – 1s or 0s.

To send a binary message, the 1s and 0s are pushed out as high or low voltages.

A small whole number might be transmitted as a single byte of 8 bits (eg decimal number 57 = binary 00111001).

The binary number 00111010 is graphed against voltage. 0s are high voltage; 1s are low voltage.

A letter or other character might be encoded using a system like ASCII (eg letter ‘g’ = ASCII code 01100111).

The binary number 00111010 is graphed against voltage. 0s are high voltage; 1s are low voltage.




What are the challenges for humans trying to send messages to each other with binary?

  • Too many codes to remember
  • Not natural to convert binary in our heads (we use decimal for a reason!)
  • How fast should the signal go? What if the transmitter and receiver are thinking at different speeds?

Network protocols



In our simulation, both transmitter and receiver already know they are using the same system – Morse code.

When computers and devices talk, they must also establish a common way of talking. This is called a network protocol.




What usually happens at the beginning of a phone call?

  • Caller dials number.
  • Caller hears a tone and waits for receiver to pick up.
  • Receiver hears the phone ring and picks up.
  • Receiver speaks: ‘Hi, this is Betty’.
  • Caller speaks: ‘Hi Betty, it’s Ernie here’.
  • Receiver speaks: ‘Hi Ernie!’
  • Sometimes, there may be even more small talk before the real conversation begins, the reason for the call.

Why do humans do this?

  • To set up a back-and-forth dialogue. Imagine if the caller just started asking for something as soon as the receiver picked up!
  • To establish that the right person has picked up.
  • To agree on the manner of the conversation (eg how much formality, how fast).

This is a protocol. Networked devices must also establish how they will communicate, by sending and receiving special signals at the beginning.





How do we measure how ‘fast’ a network connection is? The bitrate is the number of bits arriving per second (bps), not bytes per second.

  • 1 000 bps = 1 kbps (kilobits per second)
  • 1 000 000 bps = 1 Mbps (megabits per second)




What is the speed of your internet connection at home?

  • Typical NBN download speeds range from 12 Mbps to 100 Mbps.

At 20 Mbps, how long would it take to receive a 2 GB movie file?

  • First let’s convert the file size into bits:
    • A 2 GB movie is about 2 billion bytes1.
    • 2 000 000 000 × 8 = 16 000 000 000 bits.
  • Let’s convert the bitrate 20 Mbps into bps:
    • 20 × 1 000 000 = 20 000 000 bps.
  • Time to download = 16 000 000 00020 000 000 = 800 seconds (about 13 minutes).

1 Actually, it is 2 147 483 648 bytes (1024 Bytes = 1 kB, 1024 kB = 1 MB, 1024 MB = 1 GB).



Setting up a LAN


Now we will simulate a local area network (LAN) with four micro:bits.

In this case, the communication is one-directional. The signal from the green micro:bit will be received by all three yellow micro:bits.

Diagram of four micro:bits connected together. Device 1 is the transmitter. It is green. Devices 2, 3 and 4 are receivers. They are yellow. Each device has a grid: an X axis labelled 0, 1, 2, 3, 4; and a Y axis labelled 0, 1, 2, 3, 4. Each device has two buttons labelled A and B. Each device has five pins labelled 0, 1, 2, 3V and GND. On Device 1, Button B is being pressed. Device 1 has four lights lit up (X axis listed first, then Y axis): 3, 1; 3, 2; 4, 2; 3, 3. Devices 2, 3 and 4 have four lights lit up: 0, 1; 0, 2; 1, 2; 0, 3. Connecting cable 1 is connected to Device 1, Pin 1. This is labelled transmit port. It is connected to Devices 2, 3 and 4 on Pin 0. These are labelled receive port. This cable is blue. Connecting cable 2 connects the GND pins on the four devices together. This cable is black.

Diagram 6: Simulating a LAN


TASK

Work in groups that allow for three or four micro:bits together. Make sure all micro:bits have the transmit and receive program from Lesson 1.

Connect the three or four micro:bits as in Diagram 6, and make sure the message from the sender goes to all receivers.

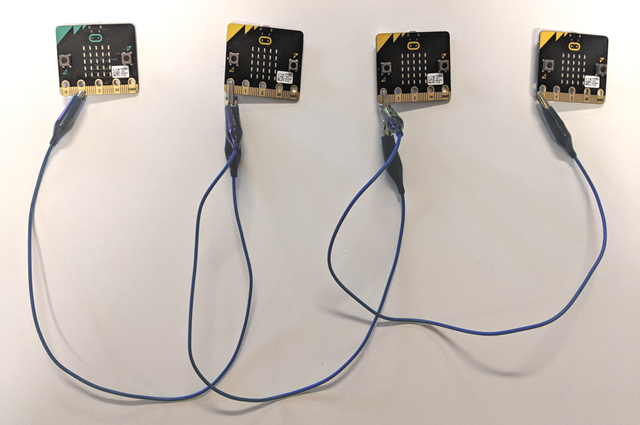

Image of micro:bits connected via a daisy chain

To make the coloured connections in the diagram above, you can use a “daisy chain”.

(Note, this photo shows only the blue connections. The black GND connections must be done also.)

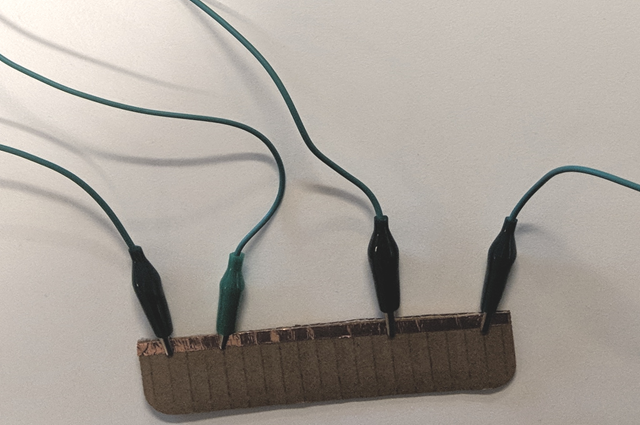

Image of alligator clips connected to a metal tape

Alternatively, you can use a single conductive rail, such as the metal tape in this photo.


A local area network (LAN) is the name given to a network of computers in the same geographical location. Connections may be wired or wireless.



Can you think of some examples of a LAN?

  • A home network is a LAN, connecting:
    • computers, laptops, tablets and phones
    • smart TVs, game consoles

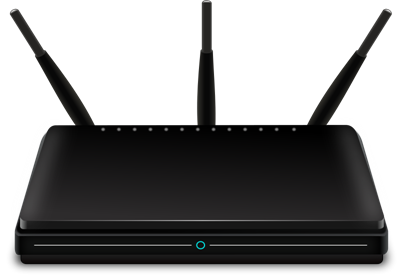

    • a modem or NBN box for access to the internet.
  • A school campus has a LAN, connecting:
    • computer lab PCs
    • student or teacher laptops
    • copiers and printers
    • file servers, which store files and data that may be used by multiple people.
  • A factory or office building usually has a LAN.

Collisions


Our LAN works fine when one person is talking.

What do you think will happen if two people try to talk at once?

  • The voltage on the wire will be forced up and down by whoever is talking.
  • Messages will be garbled.

Let’s try reversing the setup from the LAN simulation (Diagram 6). Can the yellow micro:bits all talk to the green one?

Diagram of four micro:bits connected together. Device 1 is the receiver. It is green. Devices 2, 3 and 4 are transmitters. They are yellow. Connecting cable 1 is connected to Device 1, Pin 0. This is labelled receive port. It is connected to Devices 2, 3 and 4 on Pin 1. These are labelled transmit port. This cable is blue. Connecting cable 2 connects the GND pins on the four devices together. This cable is black.

Diagram 7: reversing the set-up of Diagram 6


TASK

Connect the three or four micro:bits as in Diagram 7. Make sure all micro:bits have the transmit and receive program from Lesson 1.

Now try talking from the yellow (transmitting) micro:bits at the same time. Something is wrong.

(NOTE: Our micro:bit simulation only partially demonstrates this problem.

The yellow micro:bits that are not talking are holding the voltage low on the wire. This means that nothing gets through unless Button B is pressed on all three simultaneously.)




When two signals try to use the same medium at the same time, it is called a collision.

How do you avoid collisions when you are talking in a group?

  • Wait for someone else to finish before talking.
  • Raise hand to talk.
  • Have a ‘talking stick’ that is passed around. Only the person with the stick can talk.


The problem of collisions was addressed as part of the ethernet protocol, a popular network protocol used around the world.

The method is called Carrier-Sense Multiple Access with Collision Detection (CSMA/CD).

  • First, devices could sense when other signals were present.
  • If, by chance, two devices began talking at the same time, each would wait a random amount of ‘backoff’ time before talking again. (This could be microseconds; that’s how fast computers can talk to each other.)
  • Because the two devices each waited a different amount of time, there was a good chance that the collision would be avoided the next time.
  • However, the more devices sharing the same connection, the more chance of collisions, which meant more attempts. It was possible to have gridlock.

(The metaphor of the ‘talking stick’ was used in a competing protocol called Token Ring.)


A hub


Our next simulation will be a network hub. A hub can be thought of as a powered repeater with multiple ports. Every signal going into it passes through to all attached devices.

The green micro:bit will send a message to the hub (red micro:bit). The hub will pass the message directly to the yellow micro:bits by outputting on Pin 1 and Pin 2.

Diagram of four micro:bits connected together. Device 1 is the transmitter. It is green. Devices 2 is the hub. It is red. Devices 3 and 4 are the receivers. They are yellow. Each device has a grid: an X axis labelled 0, 1, 2, 3, 4; and a Y axis labelled 0, 1, 2, 3, 4. Each device has two buttons labelled A and B. Each device has five pins labelled 0, 1, 2, 3V and GND. On Device 1, Button B is being pressed. Device 1 has four lights lit up (X axis listed first, then Y axis): 3, 1; 3, 2; 4, 2; 3, 3. Device 2 has seven lights lit up: 1, 1; 3, 1; 2, 1; 2, 2; 3, 2; 1, 3; 3, 3. Devices 3 and 4 have four lights lit up: 0, 1; 0, 2; 1, 2; 0, 3. Connecting cable 1 is connected to Device 1, Pin 1. It is connected to Device 2, Pin 0. An arrow points from Device 1 to Device 2. The cable is blue. Connecting cable 2 connects Device 2 to Device 3. It connects Device 2 Pin 2 to Device 3 Pin 0. An arrow points from Device 2 to Device 3. The cable is orange. Connecting cable 3 connects Device 2 to Device 4. It connects Device 2 Pin 1 to Device 4 Pin 0. An arrow points from Device 2 to Device 4. The cable is orange. Connecting cable 4 connects the GND pins on the four devices together. The cable is black.

Diagram 8: network hub



What does our hub program need to do?

The hub will operate completely automatically, without any pushbuttons needed.

  • REPEAT FOREVER ...
    • IF digital read on Pin 0 is 1 (high) ...
      • Digital write 1 (high) on Pin 1.
      • Digital write 1 (high) on Pin 2.
      • Draw a ‘H’ symbol.
    • ELSE
      • Digital write 0 (low) on Pin 1.
      • Digital write 0 (low) on Pin 2.
      • Clear the ‘H’.
    • END IF
  • END REPEAT
This is visual programming code: Repeat forever (If: digital read pin P0 = 1 [then: digital write pin P1 to 1; digital write pin P2 to 1; plot x1 y1; plot x3 y1; plot x1 y2; plot x2 y2; plot x3 y2; plot x1 y3; plot x3 y3]; [else: digital write pin P1 to 0; digital write pin P2 to 0; unplot x1 y1, x3 y1, x1 y2, x2 y2, x3 y2, x1 y3; x3 y3])

Diagram 9: Hub program

TASK

Work in groups that allow for four micro:bits together. The hub (red) micro:bit should have the hub program. All other micro:bits have the transmit and receive program from Lesson 1.

Connect the four micro:bits as in the diagram above, and make sure the message from the sender (green) gets to the receivers (yellow).




Hubs were often used in the early days of networks to allow more devices to connect.

Today, they are still used occasionally, eg to quickly add more network ports in a room.

Pros

Cheap

Make more ports available quickly

Cons

Broadcast the same signal to everyone

Exacerbate the collision problem

Lesson Three

Goals


  • Introduce the concept of packets.
  • Simulate addressing packets.
  • Introduce routers.
  • Simulate packet switching.

Review of previous lesson


In the previous lesson, a problem was identified that was common in early LANs: collisions.

In this lesson, we’ll see how more intelligent devices are used to solve this problem.


Introduction



Suppose you are building a house. Your supplier needs to send lots of bricks, wood and other materials, but there isn’t room for it all in one truck.

What does your supplier do?

  • Split the materials onto different trucks, and send them one after the other.

How does your supplier ensure that all the trucks get to your building site?

  • Each truck is given the address of your building site.




In a modern network, messages are split into small parts called packets.

Packets are part of a protocol called internet protocol (IP). This protocol enables the internet, by assigning addresses to packets, so they can be delivered to devices around the world.

Each packet includes the data to be sent, but it also includes an IP address. This address specifies a device to go to, even on the other side of the world.


Setting up an internet


Now we will simulate a tiny internet with all the micro:bits in the classroom. You could pretend that the devices are in different parts of the world.

We’ll connect the micro:bits into an interesting net as in the diagram below.

  • The green micro:bit (address 04) is the source of the message. Load transmit and receive program.
  • Yellow micro:bits are potential destinations. Load transmit and receive program.
  • Red micro:bits indicate hubs. Load hub program.
  • The manual hub in Sydney (address 08) requires a student to select from two incoming signals. Because only Pin 0 is available for receiving signals, the student will need to swap the alligator clips to receive a signal from either ‘Los Angeles’ or ‘Kuala Lumpur’.
  • Don’t forget to tie all GND pins together.
Diagram of eleven micro:bits connected together in Japan, Malaysia, Australia and the USA. Device 4 is green. It is the transmitter. Button B on the device is being pressed. It has a blue cable on Pin 1 and a black cable on the GND pin. It has a blue arrow pointing to Device 3, a Hub. Device 3 is a hub. It is red. It transmits to Device 2, which is labelled hub; and Device 8, which is labelled manual hub. Device 3 has a blue cable on the 0 pin; two purple cables on the 1 and 2 pins and a black cable on the GND pin. Device 2 is a hub. It is red. It has an orange arrow pointing to Device 1 and a blue arrow pointing to Device 6, a hub. Device 1 is yellow. It has an orange cable on Pin 1 and a black cable on the GND pin. Device 6 is a hub. It is red. It has an orange arrow pointing to device 5 and a purple arrow pointing to device 8, which is a manual hub. It has a blue cable on Pin 0, an orange cable on Pin 1, a purple cable on Pin 2 and a black cable on the GND pin. Device 5 is yellow. It has an orange cable on Pin 0 and a black cable on the GND pin. Device 8 is a hub. It is red. It has a blue arrow pointing to Device 10, a hub, and an orange arrow pointing to Device 11. It has a purple cable on Pin 0, a blue cable on Pin 1, an orange cable on Pin 2 and a black cable on the GND pin. Device 11 is yellow. It has an orange cable on Pin 0 and a black cable on the GND pin. Device 10 is a hub. It is red. It has a blue cable on Pin 0, orange cables on pins 1 and 2, and a black cable on the GND pin. Orange arrows point to Devices 7 and 9. Devices 7 and 9 are yellow. They both have an orange cable on Pin 0 and a black cable on the GND pins.

Diagram 10: Simulating the internet



Jumper leads between desks may become a trip hazard. If possible, arrange desks together in the centre of the room, or in a U shape.


TASK

Connect the class micro:bits in a net like the one in Diagram 9.

Also assign a simple numerical address to each micro:bit (eg 01, 02, 03), perhaps with sticky notes.

Write down a short message you will send from the green micro:bit, and break it into packets.

Never Give Up boxes

Add the address of the destination micro:bit to the front of each packet.

09Never 09Give 09Up boxes

Convert your packets to Morse code, using a Morse code conversion table.

Never Give Up boxes

Send each packet separately. The students at each micro:bit should write down and decode all signals they receive.


In this simulation, everyone would have received all the packets.

What’s the problem with everyone receiving the packets?

  • Security: What if the packets contain sensitive information?
  • Collisions: Too much unnecessary network traffic.

Clearly, we need something smarter than hubs for our internet to succeed.





Enter routers. Routers have many advantages over hubs:

Pros

They can direct a packet out of one port, instead of all ports. This is called packet switching.

They actively learn which ports lead to which destinations, by communicating with their immediate neighbours.

They also support security software (firewalls) to help secure a LAN.

Cons

Expensive compared to hubs.


We’ll replace our hubs (red micro:bits) with routers by changing the program.





What does our router program need to do?

Our router program will not automatically transmit an incoming message like the hub.

Instead, the student with this micro:bit will need to:

  1. note down the incoming packet, including the destination
  2. decide whether to transmit on Pin 1 or Pin 2
  3. press Button A to toggle which pin to use
  4. use Button B to transmit the Morse code.

Our program will need a variable to remember whether to transmit on Pin 1 or Pin 2. We’ll set it to Pin 1 at the start.

  • transmissionPin ← 1
  • REPEAT FOREVER ...
    • IF button A is being pressed...
      • Swap value of transmissionPin.
      • Display a confirmation.
    • END IF
    • IF button B is being pressed...
      • Transmit on transmissionPin.
    • ELSE
      • Do usual clear transmit code.
      • Do the receive code here.
    • END IF
  • END REPEAT
This is visual programming code: On start (set transmission pin to 1). Repeat forever: If: button A is pressed, then [if transmission pin = 1; then set transmission pin to 2, basic.showString(“Now using Pin 2.”, 50)] else set transmission pin to 1, basic.showString(“Now using Pin 1.”, 50]. Then: If: button B is pressed, then [if transmission pin = 1]; [then digital write pin P1 to 1]; [else digital write pin P2 to 1]. plot x3 y1; plot x3 y2; plot x4 y2; plot x3 y3; Else: [digital write pin P1 to 0]; [digital write pin P2 to 0]. unplot x3 y1; x3 y2; x4 y2, x3 y3]; [if: digital read pin P1 to 0]; [then: plot x0 y1, x0 y2, x1 y2, x0 y3]; [else unplot: x0 y1, x0 y2, x1 y2, x0 y3]

Diagram 11: Router program


TASK

Replace the hub program on the red micro:bits with the router program.

Retry the experiment in which students send a message in packets. This time, the students with the routers will need to send on each packet that comes in. They can use their own knowledge of our internet layout to decide which pin to use each time.

Try sending packets down different routes, but make sure they all end up at the destination.



You can follow a real packet passing through routers on the internet by using the traceroute command.

Try using the command to trace the route to an address that is definitely hosted overseas, such as www.thescotsman.co.uk. You may see routers in Sydney, California, New York and Britain.

Note: the traceroute command sometimes fails, and may be blocked by settings at your school.


IP addresses


Our micro:bit addresses are simple, but real IP addresses are made up of four numbers, each between 0 and 255, eg 172.16.254.1

How many unique addresses can be made from those four numbers?

  • 256 × 256 × 256 × 256 = 4 294 967 296 (about 4 billion).
  • Several million of those are reserved for special purposes.

How many networked devices do you think there are in the world today? Don’t forget, they could be computers, TVs, fridges, phones, tablets, etc.

How is it possible that there are more unique devices than IP addresses?

Routers are able to assign any IP addresses within a LAN, and remember them when packets come in from outside. All addresses within a LAN must still be unique to each other.

Also, a new version of IP address (IPv6) contains many more digits, allowing for 3.4×1038 unique addresses.


DNS servers

We can type names like www.google.com to get to a device, rather than an actual IP address.

This is thanks to Domain Name Servers (DNS), which keep registered domain names (like google.com) and match them to IP addresses.

When you type in www.google.com, your web browser queries a DNS and finds the actual IP address.


A switch (optional)

Hang on, so what’s a switch? To save complicating things, we’ve brushed over switches.

Switches are used extensively in large LANs like office buildings and schools, because they can have many more ports more cheaply than a router. At home, a single router is usually enough.

A switch is smarter than a hub, but not as smart as a router. Switches are able to see the Media Access Control (MAC) addresses of devices. They can learn to send packets to specific devices within a LAN, but they cannot communicate to other networks. That requires a router.

Lesson Four

Goals


  • Introduce transport control protocol (TCP).
  • Simulate sequencing packets.
  • Simulate packet sniffing.
  • Understand the rationale for encryption.
  • Compare wired, wireless and mobile networks in terms of performance.

Review of previous lesson


In the previous lesson, a tiny internet was set up in the classroom. A message was split into addressed packets, and routers were used to send the packets to the correct destination.

In this lesson, we’ll solve a couple more problems and threats to our packets.


Introduction



Last lesson, we began with a question about sending building materials to a construction site.

The supplier splits the materials onto different trucks. She gives the address of the construction site to each truck, but the trucks may all take different routes to the address.

Why might the trucks take different routes?

  • A road might become closed.
  • There might be heavy traffic on one route.

What problem might this cause at the construction site?

  • Materials may arrive in the wrong order for construction.

The same problem can occur with our packets. Routers may send them down very different routes to the destination. Unlike building a house, the receiver usually won’t know in which order to reassemble the packets of a message.

What could be the solution?

  • When you first split the message into packets, number each packet in order.

Numbering the packets for order is the job of another protocol called transport control protocol (TCP). TCP does its work of numbering the packets before IP adds the destination address to each one.

TCP also adds bits to help determine if a packet became corrupted on its way. If so, a resend can be requested.

TCP and IP work so closely together that they are often referred to as TCP/IP.


One more time with the internet


Let’s connect the micro:bits into one more internet simulation. Diagram 9 in Lesson 3 is reproduced below. You might try a different layout.

  • The green micro:bit (address 04) is the source of the message. Load transmit and receive program.
  • Yellow micro:bits are potential destinations. Load transmit and receive program.
  • Red micro:bits are routers. Load router program.
  • The manual router in Sydney (address 08) requires a student to select from two incoming signals. Because only Pin 0 is available for receiving signals, the student will need to swap the alligator clips to receive a signal from Los Angeles or Kuala Lumpur.
  • Don’t forget to tie all GND pins together.
Diagram of eleven micro:bits connected together in Japan, Malaysia, Australia and the USA. Device 4 is green. It is the transmitter. Button B on the device is being pressed. It has a blue cable on pin 1 and a black cable on the GND pin. It has a blue arrow pointing to Device 3, a Hub. Device 3 is a hub. It is red. It transmits to Device 2, which is labelled hub; and Device 8, which is labelled manual hub. Device 3 has a blue cable on the 0 pin; two purple cables on the 1 and 2 pins and a black cable on the GND pin. Device 2 is a hub. It is red. It has an orange arrow pointing to Device 1 and a blue arrow pointing to Device 6, a hub. Device 1 is yellow. It has an orange cable on Pin 1 and a black cable on the GND pin. Device 6 is a hub. It is red. It has an orange arrow pointing to device 5 and a purple arrow pointing to device 8, which is a manual hub. It has a blue cable on Pin 0, an orange cable on Pin 1, a purple cable on Pin 2 and a black cable on the GND pin. Device 5 is yellow. It has an orange cable on Pin 0 and a black cable on the GND pin. Device 8 is a hub. It is red. It has a blue arrow pointing to Device 10, a hub, and an orange arrow pointing to Device 11. It has a purple cable on Pin 0, a blue cable on Pin 1, an orange cable on Pin 2 and a black cable on the GND pin. Device 11 is yellow. It has an orange cable on Pin 0 and a black cable on the GND pin. Device 10 is a hub. It is red. It has a blue cable on Pin 0, orange cables on pins 1 and 2, and a black cable on the GND pin. Orange arrows point to Devices 7 and 9. Devices 7 and 9 are yellow. They both have an orange cable on Pin 0 and a black cable on the GND pins.

Diagram 12: Simulating the internet again


TASK

Connect the class micro:bits in a net like the one above.

Write down a short message you will send from the green micro:bit, and break it into packets.

Never Give Up boxes

Add the order sequence number to the front of each packet.

01Never 02Give 03Up Micro:Bit message

Add the address of the destination micro:bit to the front of each packet.

0901Never 0902Give 0903Up Micro:Bit message

Convert your packets to Morse code, using a Morse code conversion table.

Never Give Up Micro:Bit morse code message

Send each packet separately, with some going via Tokyo and others direct to Sydney.

Once the packets reach the destination, decode each packet and strip off their addresses. Then use the order numbers to reassemble the packets.


Packet sniffing


Suppose a hacker wanted to spy on the packets that arrive at the destination. How could they do that in our micro:bit network?

  • Tap into the signal by clipping onto Pin 0 on the destination, or even onto one of the routers along the way.

TASK

Try using a spare micro:bit to tap into your network and spy on packets going through.



Spying on packets is called packet sniffing. It’s not only used by hackers, but also by network analysts trying to improve network performance.

This form of tapping a network requires physical access to the hardware, but there are a number of more sophisticated ways to sniff packets, even in wireless networks.



How can a packet sniffer be thwarted? How can information be kept secure?

  • Physical security (locks, security codes, surveillance)
  • Software security: many routers come with firewall software, which can prevent common hacking techniques
  • Encryption

Encryption


Encryption is a focus in the years 9–10 Digital Technologies curriculum. Here, we will do a simple example only.



Is Morse code already a form of encryption?

  • Not really. Although it is a form of encoding letters and numbers like ASCII, everyone already knows the key – how to decode it.

How could we encrypt the letters in our message?

  • Move all letters up by 1. (A becomes B, B becomes C, etc.)
  • Use a more complex algorithm based on the positions of the letters in the alphabet.

TASK

Without your ‘hacker’ knowing the key, send a new encrypted message over your network.


Encryption by simply moving letters is very weak. Why?

  • Humans can often see the pattern quite quickly. Computers can discover the pattern even more quickly.
  • A trick is to look for small words, like ‘a’ or ‘the’. The famous Enigma machine from WWII was easier to crack because Nazi correspondents often included the same information or phrases, eg ‘Heil Hitler’.

Our micro:bit network simulation has been very simple compared to real digital networks.

To finish this course, let’s compare some real technologies used for wired and wireless communication.

Twisted pair is a common, cheap cable used in ethernet networks. It uses pairs of copper wires, each pair twisted to reduce electrical interference.

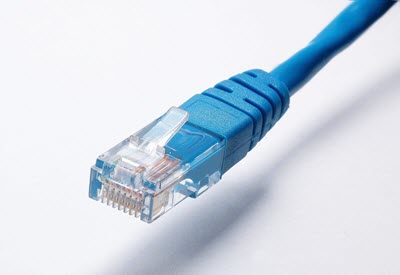

Blue computer cable

Optical fibre uses laser light pulses instead of electricity. Each fibre is a very thin tunnel with a reflective wall on the inside.

Optical fibre

Wi-Fi (also called 802.11) uses radio waves in a small area. It works with the ethernet protocol, so IP and TCP work in a similar way to our simulation, but with radio signals instead of electrical current.

WiFi modem

Bluetooth is a smaller-range wireless communication protocol, and relies on pairing two devices. It tends to be used for wireless peripherals (eg headphones, car audio, wireless mouse). The micro:bit can use Bluetooth.

Bluetooth headset

Cellular communication relies on radio towers. Mobile devices (like phones) move between the geographical areas (cells) covered by the towers.

Mobile tower

Some questions to research:

  • What is the maximum bitrate you can expect from twisted pair? (Note: there are different versions.)
  • What is the common name for the connectors on ends of twisted-pair cables?
  • What advantage does optical fibre have over twisted pair?
  • What is the Australian connection with Wi-Fi’s invention?
  • What is the maximum range and bitrate of Wi-Fi (Note: there are different versions.)

Review questions

Lesson 1

  1. What are the four main reasons for networking computers?
  2. What was Morse code originally developed for?
  3. Convert the following message into Morse code:

    It is not down on any map; true places never are. (Herman Melville)

  4. Convert the following message into English:
coded message

Lesson 2

  1. Digital devices both store and send data in b__________, which is a system of 1s and 0s called b______. Eight b______ together make one b______.
  2. What is the name for an established set of rules allowing networked devices to talk together?
  3. True or false: A measure of the speed or bandwidth of a connection, bitrate is measured in bytes per second (bps)?
  4. What does LAN stand for?
  5. What is the name for a computer that provides file storage for multiple users to share?
  6. Explain the problem of signal collisions in networks.
  7. Explain how the problem of collisions was addressed within by CSMA/CD.
  8. Which network protocol is CSMA/CD a part of?
  9. List one advantage and one disadvantage of hubs in networks.

Lesson 3

  1. What is the name of the protocol responsible for addressing data packets so that they arrive at their destination across the world?
  2. How do routers solve the problem of signal collisions where hubs do not?
  3. How do routers know which route to send packets to reach their destination?
  4. How are real IP addresses different from the simple numbers used in our simulation?
  5. What translates names like google.com into actual IP addresses?

Lesson 4

  1. List two benefits of transport control protocol (TCP).
  2. What is packet sniffing?
  3. Encryption is one of three ways discussed for securing data on a network. What are the other two?
  4. Why isn’t optical fibre subject to electrical interference?
  5. Why don’t mobile phones only use Wi-Fi for data?
  6. The packets below have arrived at your device, which has address 06 in our simulation.
    • First, decode the packets from Morse code.
    • Then, use the sequence numbers to put the message in the correct order.
    coded message
